Preliminary visual system concept

Air and water systems,
engineered since 1954.

Explore systems Wet ESP system page
Conceptual system logic: untreated process streams are collected (01), treated (02), recovered (03) and discharged (04); the line turns green once treated. One integrated system
Conceptual system logic: collect, treat, recover, discharge. 01 Collect Waste gas collection 02 Treat Wet ESP · scrubbers · oxidizers 03 Recover Heat and by-products 04 Discharge Treated stream onward
  1. CollectWaste gas collection
  2. TreatWet ESP · scrubbers · oxidizers
  3. RecoverHeat and by-product recovery
  4. DischargeTreated stream onward
Fig. 01 System logic of AHLS process technology — a conceptual illustration, not a process flow diagram.

A.H. Lundberg Systems designs environmental control, chemical recovery and heat transfer systems — from feasibility studies to turnkey EPC delivery — for pulp and paper, wood products, mining, power, oil and gas and chemical industries.

Published figures

Every number in this concept is quoted from ahlundberg.com and linked to its source.

Year A.H. Lundberg established its own company
1954
Source
NCG collection systems installed worldwide
200+
Source
Wet ESP collection efficiency (up to 99%)
≤99%
Source
Purity of recovered methanol
99.85wt%
Source
Sulphur burner capacity, molten sulphur burned
1–100+t/d
Source

More than the sum of their parts.

Seven engineered system families — from single-system components to EPC turnkey projects involving multiple systems integration.

Air Pollution Control installation by AHLS

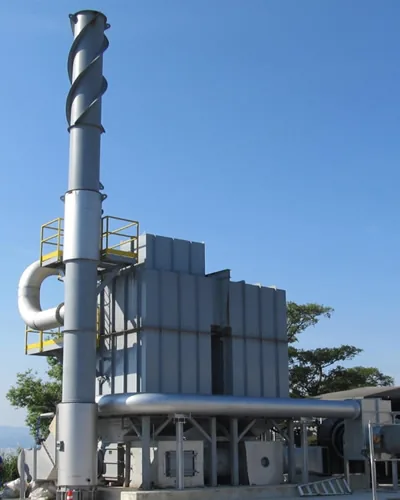

Fig. 02.1Air Pollution Control. Image: ahlundberg.com
  1. 01

    Air Pollution Control

    Collection, conditioning and destruction or recovery of particulate, acid mist, VOCs and inorganic gases.

  2. 02

    Wastewater Treatment

    Clarify and filter solids, neutralize, demineralize and remove hazardous organics — for disposal, reuse or product recovery.

  3. 03

    Heat Transfer

    Shell & tube exchangers, condensers, quenchers and flue/vent gas heat recovery for fouling, corrosive streams.

  4. 04

    Evaporators & Crystallizers

    From pre-evaporators to concentrators and crystallizers with high product solids.

    • Black liquor evaporators
    • Concentrators
    • Salt-recovery crystallizers
  5. 05

    Methanol Purification

    Patented system recovering commercial-grade methanol (>99.85 wt%) from foul condensates or sour water.

    • High-purity methanol
    • Dehydrated SOG
    • Stripped water
  6. 06

    Sulphur Burner

    Incinerates elemental sulphur to SO₂ — 1 to 100+ t/d, discharge pressure up to 300 kPag.

    • Solid or molten feed
    • Air-atomizing nozzle
    • Waste heat boiler option
  7. 07

    Chemical Handling

    Distillation columns, hot gas quenchers, mixer/reactors and by-product recovery systems.

Family names and scope as listed on the AHLS Systems Overview. Links open the current pages on ahlundberg.com; Wet ESP opens the concept system page.

From basic audits to full project turnkey.

A flexible engineering scope of services: each phase can be commissioned on its own or carried through from feasibility to commissioning and start-up support.

  1. Phase A

    Basic Engineering

    • Feasibility studies
    • Conceptual design
    • Technical & economic evaluation
    • Regulatory compliance
    • Cost estimation
    • Risk assessment
  2. Phase B

    Detailed Engineering

    • 2D / 3D design development
    • PFDs and P&IDs
    • Equipment specification & sizing
    • Materials & procurement support
    • Instrumentation & controls
    • Quality assurance & control
    • Commissioning & start-up support
  3. Phase C

    Turnkey Engineering

    • From a heat exchanger replacement to complete evaporation systems
    • All major systems designed for turnkey installation
    • Plant specifications and preferred suppliers
    • Collaboration with local vendors

Engineering disciplines

3D piping and vessel model prepared by AHLS engineering

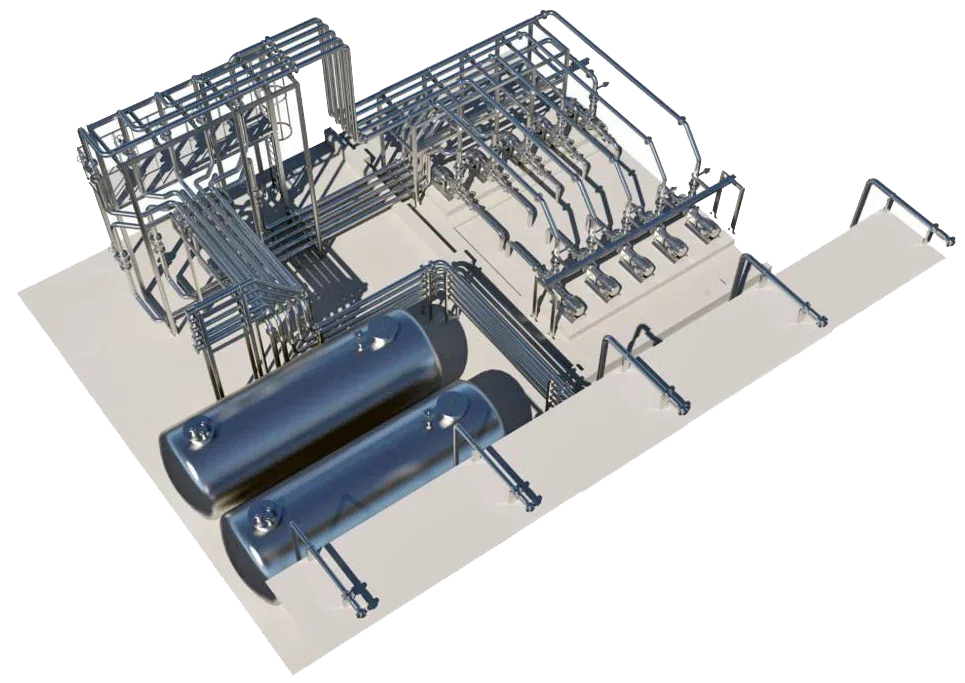

Fig. 04.13D design model. Image: ahlundberg.com
  • P

    Process

    PFDs, P&IDs, vessel drawings, pump and instrument specifications, general arrangements, operating & maintenance manuals.

  • M

    Mechanical

    Conceptual and detailed design, FEA, structural analysis, 2D/3D CAD, materials selection, heat transfer and technical documentation.

  • I.C.E.

    Instrumentation, Controls, Electrical

    Instrument selection, control valve sizing, DCS/PAC/PLC/SIS configuration, HMI design, SAMA diagrams, panel and cable layouts.

  • C/S

    Civil / Structural

    Structural design and analysis, foundation design, construction documentation and demolition planning.

Applied across seven industries.

Every mark below is taken from an AHLS industry page — no inferred applications. Select an industry to read what is published.

IndustrySystem group →Wet ESPThermal oxidationGas collection & scrubbingWastewater treatmentEvaporators & crystallizersHeat transfer & recoverySulphur burnersMethanol purificationChemical handling & specialty

Pulp & Paper — published applications

  • Thermal oxidationWaste gas incineration — RTO, RCO or DFO
  • Gas collection & scrubbingWaste gas collection (CNCG, DNCG); scrubbers for gas conditioning
  • Wastewater treatmentSteam stripping column for foul condensate TRS and BOD removal
  • Evaporators & crystallizersEvaporator and crystallizer for liquors or brines
  • Heat transfer & recoveryHeat recovery systems and heat exchangers for kraft and TMP mills
  • Sulphur burnersSulphur burners for sulphite and bisulphite solutions
  • Methanol purificationMethanol purification to 99.85% commercial grade
  • Chemical handling & specialtySpecialty equipment; turpentine and soap recovery
Read the Pulp & Paper page on ahlundberg.com
Pulp & Paper8 system groups
  • Thermal oxidationWaste gas incineration — RTO, RCO or DFO
  • Gas collection & scrubbingWaste gas collection (CNCG, DNCG); scrubbers for gas conditioning
  • Wastewater treatmentSteam stripping column for foul condensate TRS and BOD removal
  • Evaporators & crystallizersEvaporator and crystallizer for liquors or brines
  • Heat transfer & recoveryHeat recovery systems and heat exchangers for kraft and TMP mills
  • Sulphur burnersSulphur burners for sulphite and bisulphite solutions
  • Methanol purificationMethanol purification to 99.85% commercial grade
  • Chemical handling & specialtySpecialty equipment; turpentine and soap recovery
Pulp & Paper on ahlundberg.com
Wood Panel Board2 system groups
  • Wet ESPWet Electrostatic Precipitator (Wet ESP)
  • Thermal oxidationRegenerative thermal and catalytic oxidizers (RTO, RCO)
Wood Panel Board on ahlundberg.com
Insulation Manufacturing2 system groups
  • Wet ESPWet Electrostatic Precipitators (Wet ESP)
  • Thermal oxidationRegenerative thermal and catalytic oxidizers (RTO, RCO)
Insulation Manufacturing on ahlundberg.com
Mining & Mineral Processing7 system groups
  • Wet ESPWet ESP on ore dryers for acid mist elimination
  • Thermal oxidationIncineration — DFO, RTO and RCO
  • Gas collection & scrubbingSO₂ adsorption systems (FGD scrubber)
  • Evaporators & crystallizersEvaporator and crystallizer for wastewater treatment
  • Heat transfer & recoveryCustom heat exchangers, e.g. autoclave flash vapour condensers
  • Sulphur burnersSulphur burners for gold mine cyanide destruction
  • Chemical handling & specialtyChemical handling; hot gas quenchers, phase separation, safety components
Mining & Mineral Processing on ahlundberg.com
Oil & Gas6 system groups
  • Wet ESPWet ESP for particulate and acid mist removal
  • Thermal oxidationIncineration — DFO, RTO and RCO
  • Wastewater treatmentDistillation column for sour water stripping
  • Evaporators & crystallizersEvaporator and crystallizer for brine remediation
  • Heat transfer & recoveryFlue gas heat recovery; exchangers for high-viscosity fluids
  • Chemical handling & specialtySpecialty equipment and safety system components
Oil & Gas on ahlundberg.com
Power Generation4 system groups
  • Wet ESPWet ESP for particulate and acid mist removal
  • Thermal oxidationIncineration — DFO, RTO and RCO
  • Gas collection & scrubbingFlue gas desulphurization (FGD scrubber)
  • Evaporators & crystallizersEvaporator and crystallizer for wastewater treatment
Power Generation on ahlundberg.com
Chemical & Process6 system groups
  • Wet ESPWet ESP for meat smoking, potato frying and detergent plants
  • Thermal oxidationRegenerative thermal oxidizers for VOC abatement
  • Wastewater treatmentStripping column, electrocoagulation and nanoflotation
  • Evaporators & crystallizersEvaporator and crystallizer
  • Sulphur burnersSulphur burner
  • Chemical handling & specialtyChlorine vaporizers, reactors, distillation, phase separation
Chemical & Process on ahlundberg.com

Start up was smooth and virtually trouble-free: the immediate attainment of full and stable operation inspires confidence for all of us.

Pulp Mill, Western Canada — customer testimonial published on ahlundberg.com

Seven decades of process knowledge.

  1. 1920s

    Alerick Halvar Lundberg begins his career with a sulfite pulp manufacturer.

  2. 1954

    A.H. Lundberg, Inc. is established; Lundberg Ahlen Equipment Ltd. is formed in Vancouver, BC.

  3. 1954–2000

    Own evaporation technology; NCG collection and destruction, foul condensate stripping, heat and by-product recovery.

  4. 2000

    A.H. Lundberg Systems Limited is established.

  5. Today

    Flexible EPC solutions for international clients.

Vessel lettered A.H. Lundberg being installed at a mill
Fig. 06.1Heat recovery system. Image: ahlundberg.com
